The AGL Unified Code Base (UCB) is a Linux distribution built from the ground up through a joint effort by automakers and suppliers to deliver a modern in-vehicle infotainment and connected car experience for consumers. Further helping reduce fragmentation and facilitate innovation in the development process. The following use cases are in development or planned to be developed :

The goal of the UCB platform is to provide 70-80% of the starting point for a production project. This enables automakers and suppliers to focus their resources on customizing the other 20-30% to meet their unique product needs.

The System Architecture Team defines the overall architecture of the AGL software according to the business requirements established by the Steering Committee.

There are multiple parallel efforts in the areas of the following, with most having specialized Expert Groups (EG) :

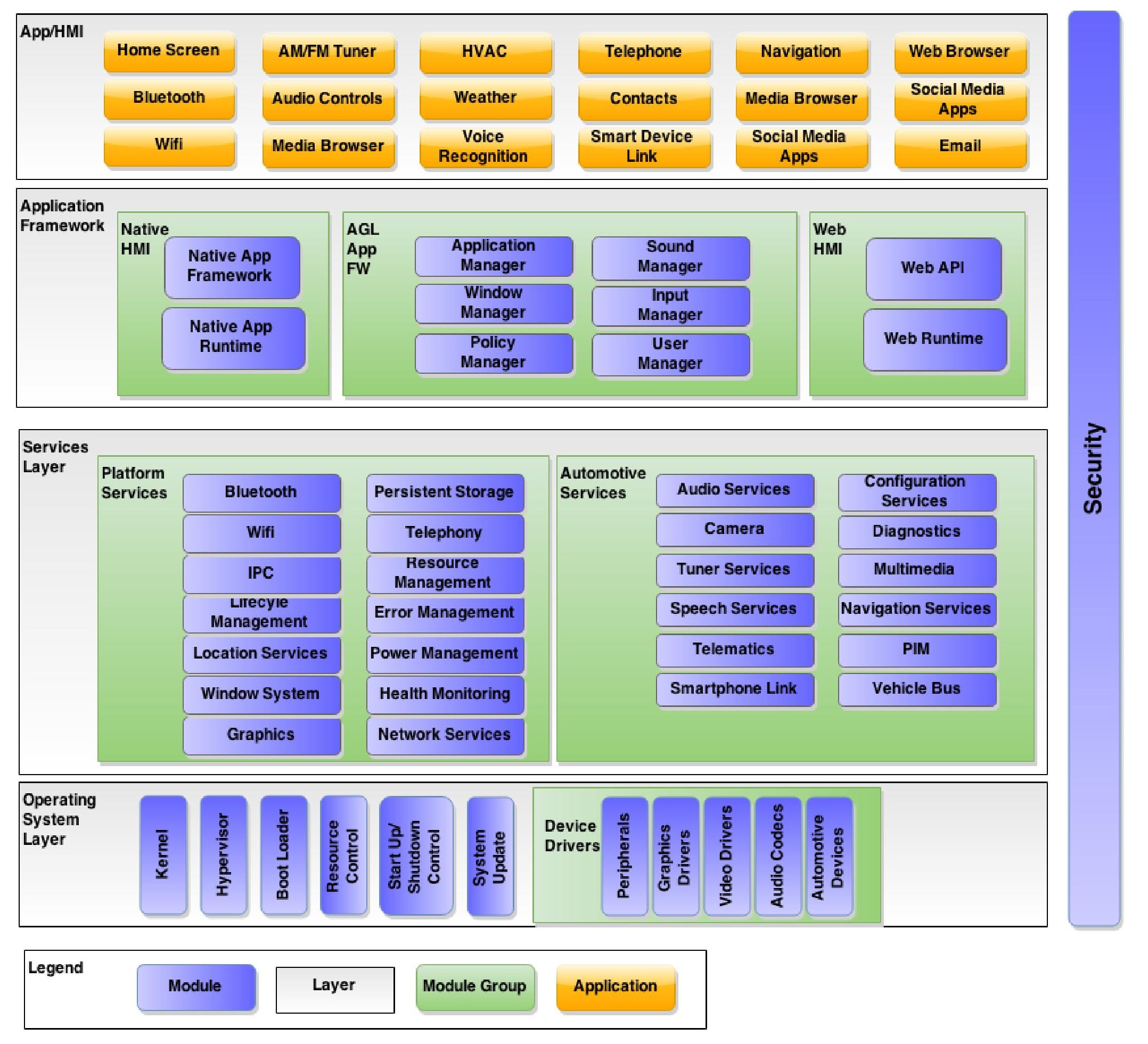

The Automotive Grade Linux Software Architecture diagram is below. The architecture consists of five layers. The App/HMI layer contains applications with their associated business logic and HMI.

Architecture Diagram

The Application Framework layer provides the APIs for creating both managing and running applications on an AGL system. The Services layer contains user space services that all applications can access. The Operating System (OS) layer provides the Linux kernel and device drivers along with standard OS utilities. For IVI (In Vehicle Infotainment) system a full fledged demo is available.
