Application Hardening: Best practices to apply to the build and release of user space applications, in order to reduce the number of attack surfaces used by potential attackers.

The term of Application (App) has a very wide definition in AGL. Almost anything which is not in the core Operating System (OS) is an Application. Applications can be included in the base software package (image) or can be added at run-time.

Application containment is achieved using the following protections:

Application Types

AGL provides a framework for applications to be written in different forms:

While there is no harm in providing multiple types of applications, from a security perspective this does increase the attack surface for an intruder. The application framework (AppFw) consists of a number of utilities and daemons which provide context for the applications. Isolation is provided through SMACK labels.

Application Store

Although the Tizen system has defined a system of App signing and signing flow to avoid the spread of unauthorized Apps that might contain malware. At this point, it is unclear how much of this flow AGL will adopt. However, judging from the experience, it is an essential topic. For example, the Google Play Store controls the authorization of Apps through signing, and still, there are many accounts of Apps containing malware on the store.

Tizen defines 5 levels of certificates and signing at each level, including an author, testing distributor, public level store distributor, partner level store distributor, and platform level store distributor. AGL may define a different number of third parties, but at a minimum an author and store distributor should be defined.

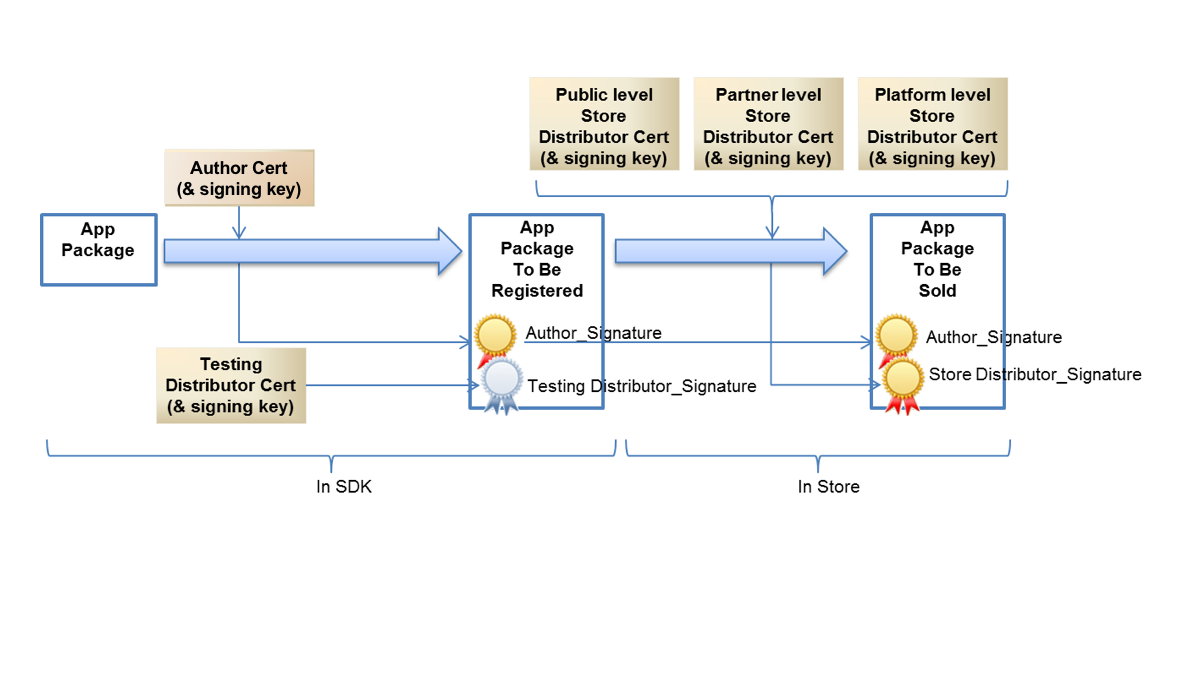

App Signing Flow

Once the number of signatures has been established, verification of those signatures needs to be done at a minimum at installation time on the AGL device. It is important to ensure the robustness/integrity of the public key used for signature verification. If the public key is modified, then this compromised key can be used to verify an attacker's private key signature.

Further to this, installation-time verification is limited. Attacks can happen to apps in-memory at runtime. Any modifications made after installation will be missed by installation-time verification. Integrity verification that runs during execution makes for a more complete security story.

Acronyms and Abbreviations

The following table lists the terms utilized within this part of the document.

Acronyms or Abbreviations Description
3GPP 3rd Generation Partnership Project
CASB Cloud Access Security Broker
DAST Dynamic Application Security Testing
DPI Deep Packet Inspection
IDS Intrusion Detection Systems
IPS Intrusion Prevention Systems
IPSec Internet Protocol Security
LSM Linux Security Module
MITM Man In The Middle
OSI Open Systems Interconnection
SATS Static Application Security Testing


Domain Improvement
Application-Installation-1 Talk about AppFw offline mode.


Applications can be delivered and installed with the base image using a special offline-mode provided by the AppFw. Apps can also be installed at run time.

During early release, default Apps are installed on the image at first boot.

Domain Object Recommendations
Application-Installation-1 AppFw Provide offline-mode in order to install app with the base image.
Application-Installation-2 Integrity Allow the installation of applications only if their integrity is good.


Privilege Management

Application privileges are managed by Cynara and the security manager in the AppFw. For more details, please refer to the AppFw documentation in Platform part.

App Signature

Domain Improvement
Application-Signature-1 Add content (see secure build in Secure development part).


Domain Improvement
Application-Services-1 Add content (Which services?).
Application-Services-2 Add Binder.
