Unified HMI


This document describes the design and usage of the Unified HMI, which is a common platform technology for UX innovation in integrated cockpit by flexible information display on multiple displays of various applications. Applications can be rendered to any display via a unified virtual display.

Remote Virtio GPU (RVGPU)

The RVGPU rendering engine, operating on a client-server model, creates 3D rendering commands on a client device and transmits them to a server device via the network, where the server-side device performs GPU-based rendering and displays the results. The meta-rvgpu currently supports x86, Raspberry Pi 4, and Renesas Boards platforms.

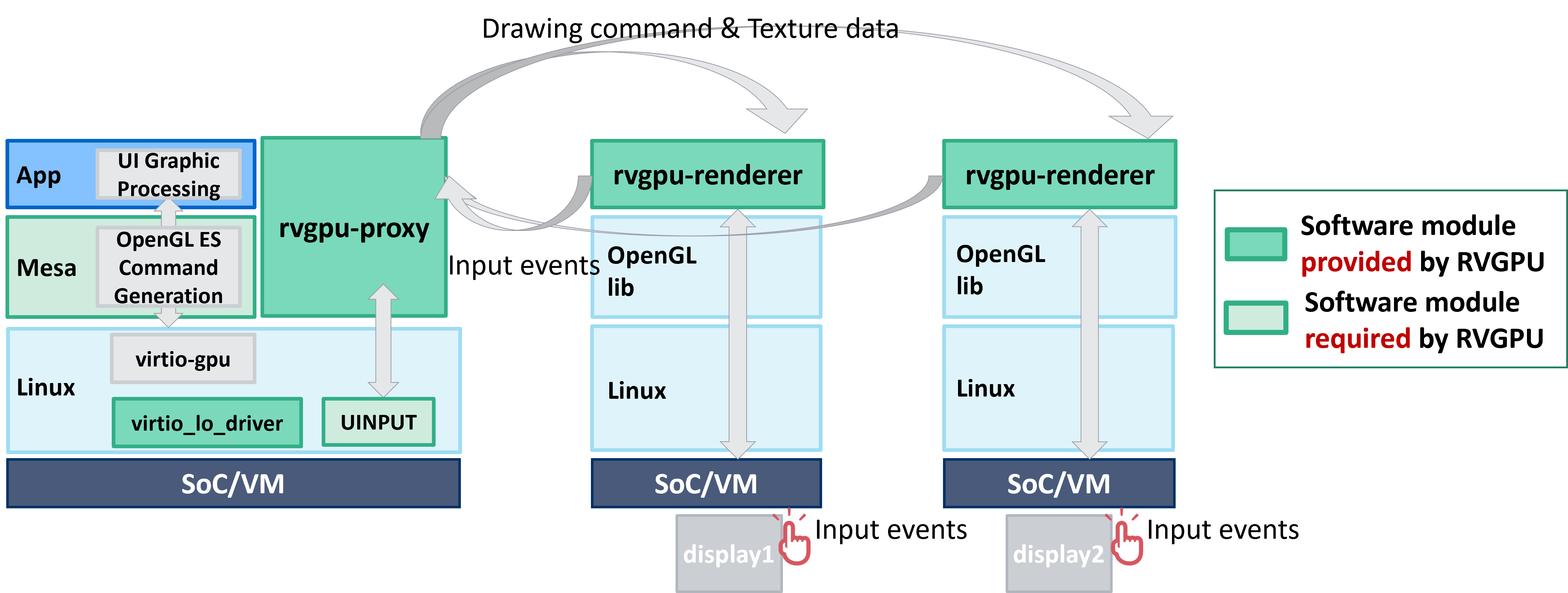

RVGPU Architecture


How to Build

Follow the AGL documentation for the build process, and set up the "Initializing Your Build Environment" section as described below to enable the AGL feature 'agl-rvgpu'. For example:

$ cd $AGL_TOP/master
$ source ./meta-agl/scripts/aglsetup.sh -m qemux86-64 -b qemux86-64 agl-demo agl-devel agl-rvgpu
After adding the feature, execute the command:
$ bitbake <image_name>
Note: The operation has been confirmed with the agl-demo-platform. If you wish to specify a different <image_name> other than agl-demo-platform, create a file named <image_name>.bbappend in the directory
, and then add the following line to the file:

IMAGE_INSTALL:append = " packagegroup-rvgpu"

After making this change, you will need to execute the following commands:

$ cd $AGL_TOP/master
$ source agl-init-build-env
$ bitbake <image_name>

How to Setup and Boot

For Environment setup instructions for each platform, refer to the following link in the AGL Documentation.
Building for x86(Emulation and Hardware)
Building for Raspberry Pi 4
Building for Supported Renesas Boards

For Raspberry Pi 4 and Supported Renesas Boards, refer to the above URL for boot methods.
For x86 emulation (qemu), network bridge is required to enable communication with other devices when using RVGPU. Here’s an example procedure for your reference.

$ sudo ip link add <bridge_name> type bridge
$ sudo ip addr add <IP address> dev <bridge_name>
$ sudo ip link set dev <interface> master <bridge_name>
$ sudo ip link set dev <bridge_name> up
Replace the placeholders with the appropriate values: - <bridge_name>: You can assign any name, for example: br0 - <IP_address>: Enter an available IP address, for example: - <interface>: Specify the network interface, for example: eth0

To enable the use of the bridge, create or append /etc/qemu directory and /etc/qemu/bridge.conf file.

allow <bridge_name>
Make sure /etc/qemu/ has 755 permissions.
Create the following bash file named run_qemu_bridge.sh in any <WORKDIR>.


printf -v macaddr "52:54:%02x:%02x:%02x:%02x" $(( $RANDOM & 0xff)) $(( $RANDOM & 0xff )) $(( $RANDOM & 0xff)) $(( $RANDOM & 0xff ))

qemu-system-x86_64 -enable-kvm -m 2048 \
    -kernel ${KERNEL_PATH} \
    -drive file=${DRIVE_PATH},if=virtio,format=raw \
    -cpu kvm64 -cpu qemu64,+ssse3,+sse4.1,+sse4.2,+popcnt \
    -vga virtio -show-cursor \
    -device virtio-net-pci,netdev=net0,mac=$macaddr \
    -netdev bridge,br=$BRIDGE_NAME,id=net0 \
    -serial mon:stdio -serial null \
    -soundhw hda \
    -append 'root=/dev/vda rw console=ttyS0,115200n8 fstab=no'
Save the file and run the following to start QEMU.
sudo <WORKDIR>/run_qemu_bridge.sh <build_directory>/tmp/deploy/images/qemux86-64/bzImage <build_directory>/tmp/deploy/images/qemux86-64/agl-demo-platform-qemux86-64.ext4
When QEMU boot, assign an IP address. For example:
ifconfig <your environment> netmask

How to run RVGPU remotely

Prepare two images, one as the Sender and the other as the Receiver. It is necessary for the Sender and Receiver to be within the same network.

Receiver side

$ export XDG_RUNTIME_DIR=/run/user/<your_UID>
$ rvgpu-renderer -b <your_Area>@0,0 -p <Port_Number> &

Replace the placeholders with the appropriate values: - <your_UID>: Specify according to your environment, for example:1001 - <your_Area>: Enter an usable area for example: 1080x1488
With the following command, you can know the usable area.

$ journalctl | grep -i "usable area"
# Example Output:
Nov 29 11:42:53 qemux86-64 agl-compositor[259]: [11:42:53.166] Usable area: 1080x1488+0,216
- <Port_Number>: Enter an available port number, for example: 55555

Sender side
Create the following shell script run_remote_app.sh in any <WORKDIR> for a smooth experience.


export XDG_RUNTIME_DIR=/tmp
export LD_LIBRARY_PATH=/usr/lib/mesa-virtio

# -------------
# launch app
# -------------

Save the file and run the following to start weston.

$ rvgpu-proxy -s 1080x1488@0,0 -n <IP_address_of_Receiver>:<Port_Number> &
$ <WORKDIR>/run_remote_app.sh weston --backend drm-backend.so -Swayland-0 --seat=seat_virtual -i 0 &
Replace the placeholders with the appropriate values: - <Port_Number>: Port set in the renderer.

After completing these steps, the Weston screen from the Sender will be transferred and displayed on the Receiver using rvgpu-proxy and rvgpu-renderer. You can verify that everything is functioning properly by launching wayland applications on the Sender side, such as:

$ weston-simple-egl -f

You can also verify the touch or keyboard operation support of the RVGPU by using app such as

$ weston-smoke
$ weston-editor
Note: There are known issues with mouse, such as the cursor becoming invisible and occasional flickering of a green screen.

- By building the RVGPU on Ubuntu, it is possible to enable bidirectional remote rendering between the agl-demo-platform and Ubuntu.
For the build procedure on Ubuntu, see the following URL: https://github.com/unified-hmi/remote-virtio-gpu

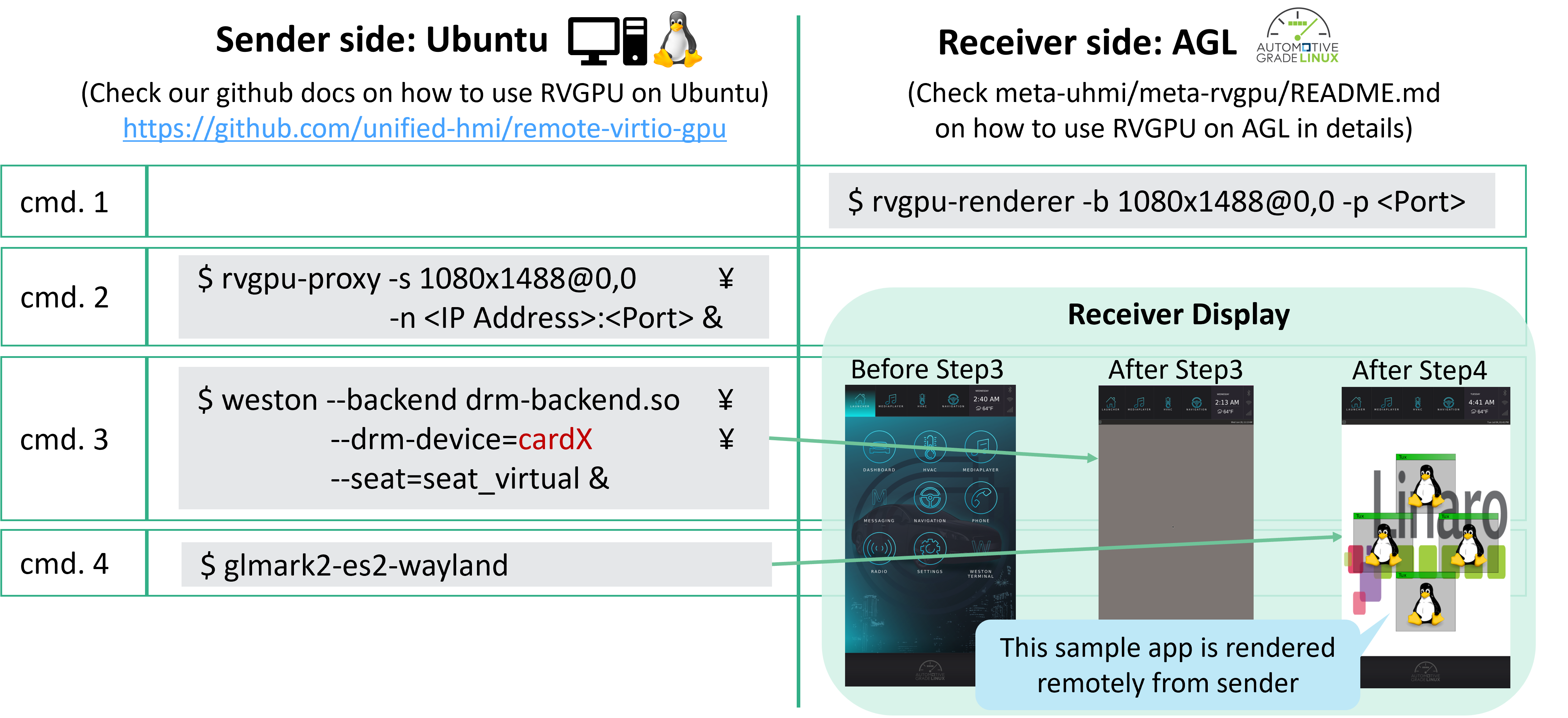

The figure below shows an example where Ubuntu is used as the Sender and AGL as the Receiver, running RVGPU.
