Instrument Cluster Sound Management


This document describes the design of the software setup which enables the integration of AGL’s sound system with applications running in the Instrument Cluster domain. This software setup is specific to the case where a single system is used to implement both the Instrument Cluster and some other domain of the vehicle, typically the In-Vehicle-Infotainment domain, using container technology to separate them.

Applications running in the Instrument Cluster need a way to safely play important sounds to alert the driver of conditions that need the driver’s attention. At the same time, in a containerized environment that serves multiple vehicle domains, applications running in other containers may be using the sound hardware to play less important sounds, such as music, which conflicts with the IC’s need to play sound on the same hardware.

The solution developed here, for safety reasons, relies on the operating system and the hardware itself to allow the IC applications to stream sounds to the speakers using a dedicated device handle, while applications from other domains are all routed through a sound server that runs on the host container and operates on a different sound device handle.

However, to achieve good inter-operation, there is need for additional software mechanisms that will work in combination with this hardware-based solution. First of all, it is necessary to have a mechanism that allows IC applications to pause all sounds that are being routed via the sound server while there is an important IC sound playing and resume them afterwards. This is so that other domain applications can be informed of this temporary pause and offer the appropriate user experience. Secondly, it is desirable to have separation of duties between the host and the other domain’s (non-IC) container. It should be the responsibility of the other domain’s container to implement the sound system policy, so that the host does not need to be aware of the exact applications that are running on this container.


Architectural design

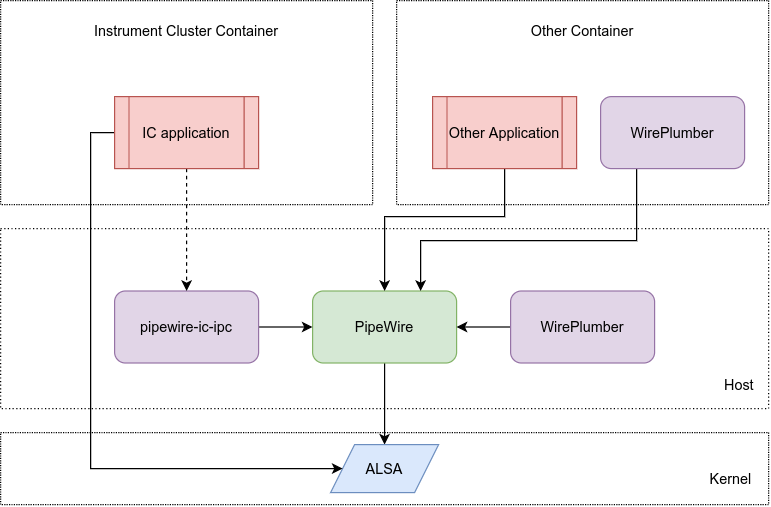

Architecture overview

The core of the sound system consists of the PipeWire daemon, which is responsible for routing audio between the kernel and applications running in the “Other Container”.

The PipeWire session is orchestrated by a secondary daemon, WirePlumber. WirePlumber is designed in such a way so that it can have multiple instances, for task separation. One instance shall be running in the host container and it shall be responsible for managing the devices that PipeWire handles as well as the security isolation between different applications and different containers. At least one more instance shall be running in the “Other Container” and be responsible for implementing policy mechanisms related to the applications that are running in that container.

Further WirePlumber instances are possible to run as well. For instance, it may be desirable to have another “policy” instance in a third container that implements another vehicle system and shares the main PipeWire daemon from the host. Additionally, the “Other Container” may be running a separate WirePlumber instance to manage bluetooth audio devices, which shall be the responsibility of that container instead of the host.

To implement communication between the IC and the host, a third daemon is used: pipewire-ic-ipc. This daemon listens on a UNIX domain socket for messages from the IC applications and offers them the ability to pause or resume sounds that are being routed via PipeWire.

Finally, IC applications are given a library (icipc library) that allows them to send messages to pipewire-ic-ipc on the host. This library is minimal and has no external dependencies, for safety reasons.

For sound playback, IC applications are expected to use the ALSA API directly and communicate with the dedicated ALSA device that is meant for IC sounds. Arbitration of this device between different IC applications is out of scope for this document and it is assumed to be a solved problem.


This component acts as the server-side component for the UNIX socket that is used for communication between the IC applications and the host. It is implemented as a pipewire module, therefore it needs the /usr/bin/pipewire process in order to be launched. Launching happens with a special configuration file (pipewire-ic-ipc.conf) which instructs this PipeWire process to be launched as a client (core.daemon = false) and to load only module-ic-ipc together with module-protocol-native. The latter enables communication with the daemon instance of PipeWire (core.daemon = true), which implements the sound server.

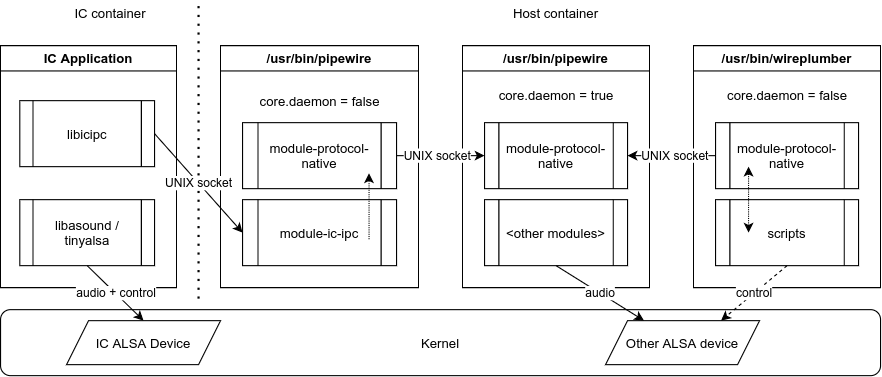

PipeWire-IC-IPC Processes

icipc library

The IC Application is given a library (‘libicipc’) that implements the client side of pipewire-ic-ipc. This library allows sending two commands:

IC Applications are expected to send the SUSPEND command before starting playback of a sound to their dedicated ALSA device. The RESUME command should be sent after playback of this IC sound has finished.

It should be noted that the RESUME command is also issued automatically when the IC application disconnects from the pipewire-ic-ipc UNIX socket.

If multiple IC application issue SUSPEND to the pipewire-ic-ipc server, then only the first SUSPEND generates actions for WirePlumber. The rest are counted and the pipewire-ic-ipc server expects an equal number of RESUME commands before generating resume actions for WirePlumber.

The implementation of the SUSPEND/RESUME mechanism uses PipeWire’s metadata to signal WirePlumber. PipeWire-IC-IPC will look for the “default” metadata object in PipeWire’s list of objects and will write the “suspend.playback” key with a value of “true” on id 0. The metadata change is then notified to all clients. WirePlumber, being a client, gets notified of this change and takes actions. All actions are defined in Lua scripts.

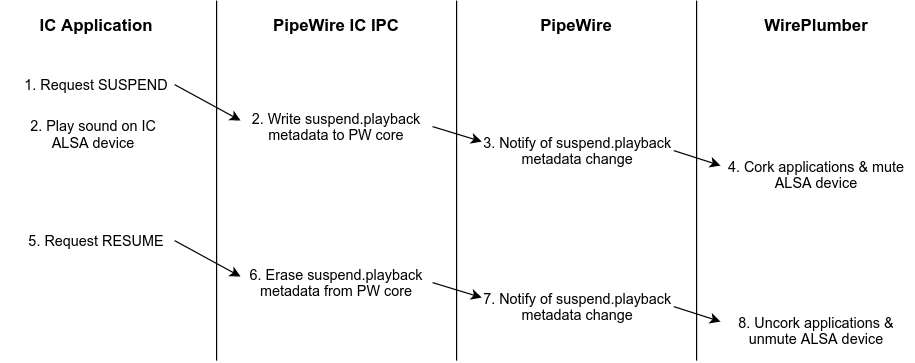

PipeWire-IC-IPC Calls
