AGL Demo Control Panel


This document describes the design and usage of the AGL Demo Control Panel, a Qt5-based tool that allows you to control and interact with various Automotive Grade Linux (AGL) demo applications. The tool uses Kuksa.val and CAN frame messages to communicate with the target machine that runs the AGL image(s). You can use the tool to perform tasks such as starting and stopping scripts, changing the vehicle speed and engine RPM, adjusting the HVAC settings, and providing Steering Inputs. The tool is designed to demonstrate the capabilities and features of AGL in a user-friendly and interactive way.

Application Overview

To use the control panel, you need to connect the main machine that runs the control panel to the target machine that runs the AGL image(s) using a LAN/ethernet cable. You also need to configure the IP address of the Kuksa server and set your preferences in the tool’s settings menu.




Before using the AGL Demo Control Panel, we need to make sure to run the Kuksa.val server and also have our can0 interface set up (Optional).

1. Connect the Machines

First, we need to connect the machines, i.e. the host machine (Running the control panel) and the target machine (running the AGL image) via LAN or a bridged network (QEMU or VM)

2. CAN interface (WIP)

To set up the CAN interface between the Host system and the target machine(s) we use cannelloni,

  1. Create the virtual CAN interface with the command:

    $ sudo ip link add dev can0 type vcan
  2. On both machines, bring the virtual CAN interface online with the command:

    $ sudo ip link set up can0
  3. Install cannelloni from its GitHub repository and run cannelloni with the following commands.

    Note: cannelloni is available in AGL, just add IMAGE_INSTALL:append = " cannelloni" to your conf/local.conf

    Host Machine (Running AGL Demo Control Panel)

    cannelloni -I can0 -R <target-ip> -r 20000 -l 20000
    Target Machine (Running AGL image)
    cannelloni -I can0 -R <host-ip> -r 20000 -l 20000 -p

    You should now be able to send and receive CAN messages between the two machines using the vcan interface and cannelloni.

3. Configuration for Kuksa-val-server/ Kuksa databroker

Run the kuksa-val-server/databroker on by either restarting the server, editing /etc/default/kuksa-databroker or add the agl-demo-preload as a feature to your build of AGL. The server should be started using the --address argument.

Now, you can create a custom configuration to save your specific preferences for the settings page by creating the *.ini* files in the, - /etc/agl-demo-control-panel.ini - $HOME/.local/share/agl-demo-control-panel/config.ini


# [cutom-config-template]
# ip=<ip address>
# port=<port number>
# protocol=<ws|grpc>       # ws/grpc -> kuksa-val-server, grpc -> databroker
# insecure=<true|false>
# cacert=<default|/path/to/CA.pem>
# token=<default|/path/to/token>
# tls_server_name=<name>


4. Start AGL Demo Control Panel

  1. To start the control panel
    $ cd /Path/to/agl-demo-control-panel
    $ source control-panel/bin/activate
    $ python -u

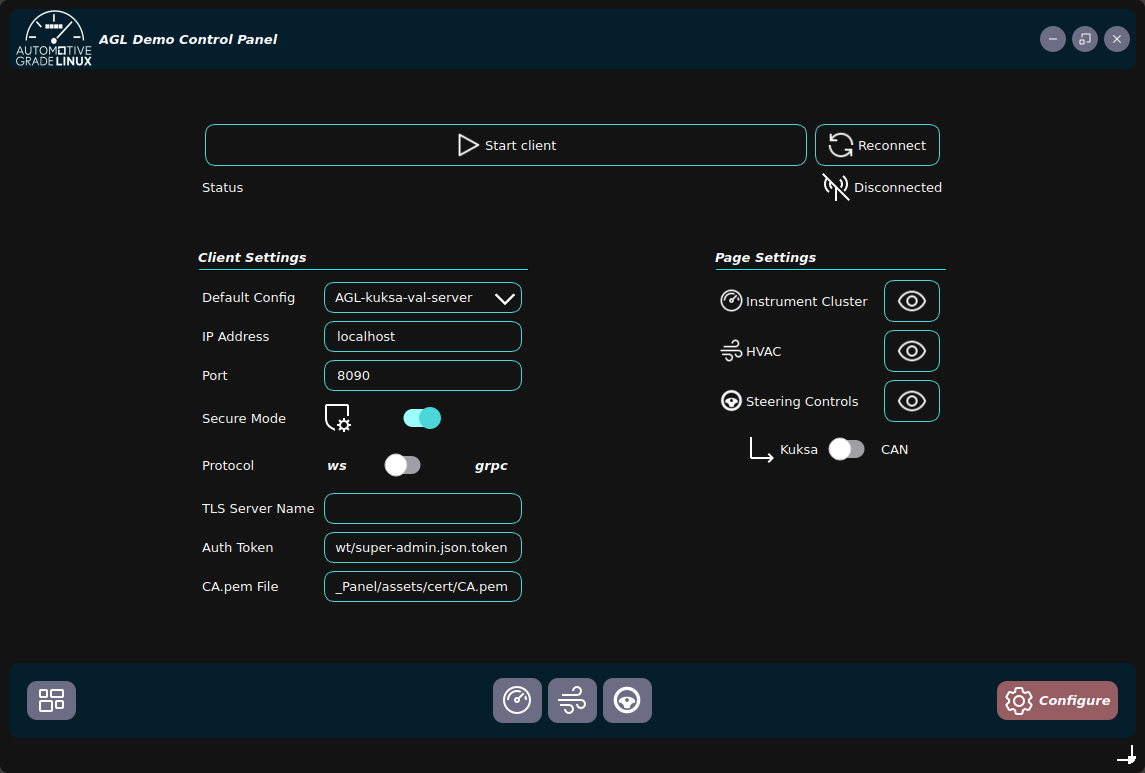

  1. Go to settings
    • Start (load default config from drop-down menu)
    • Configure: make changes as required
      • IP-Address
      • Port
      • Secure Mode: if toggled "on", specify the CA.pem File
      • Protocol: websocket ← ? → gRPC
      • TLS Server Name
      • JWT/Auth Token path
      • CA.pem certificate path
    • Start/Stop
    • Reconnect
    • Page settings: Configure the visibility of pages and switch between CAN and Kuksa messages by using the toggle for the same.

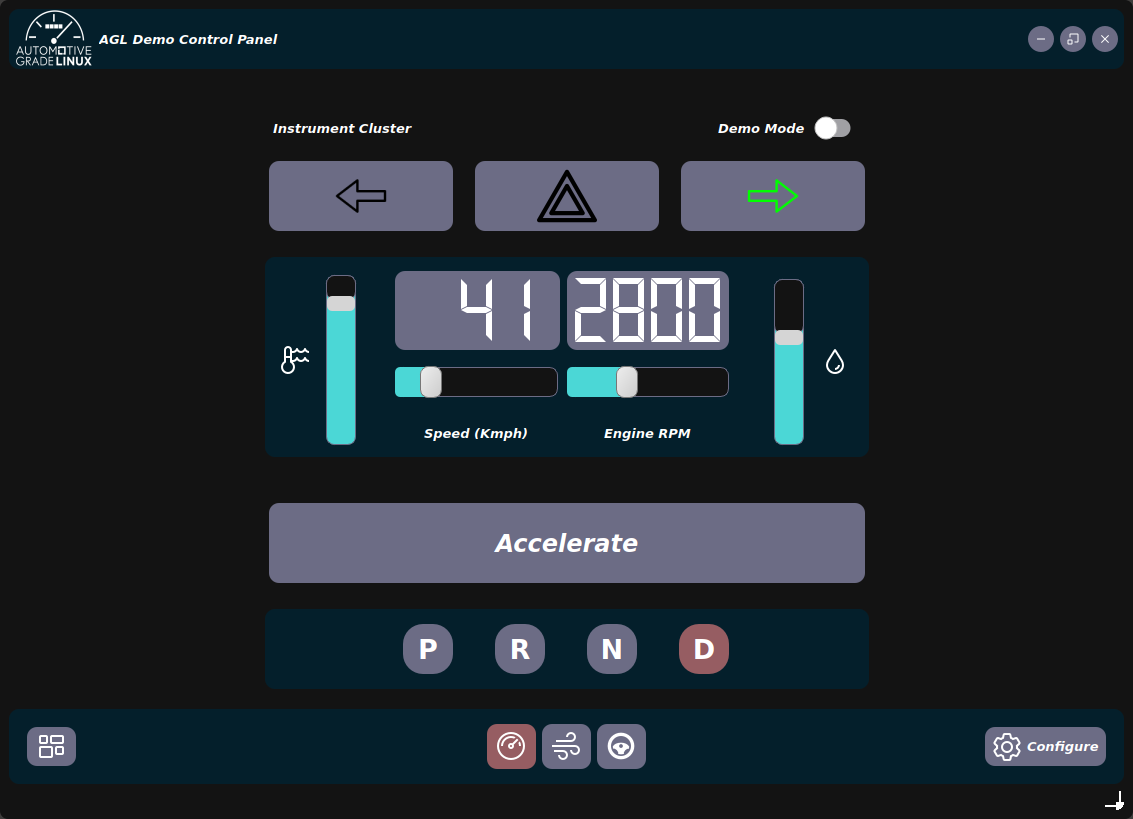

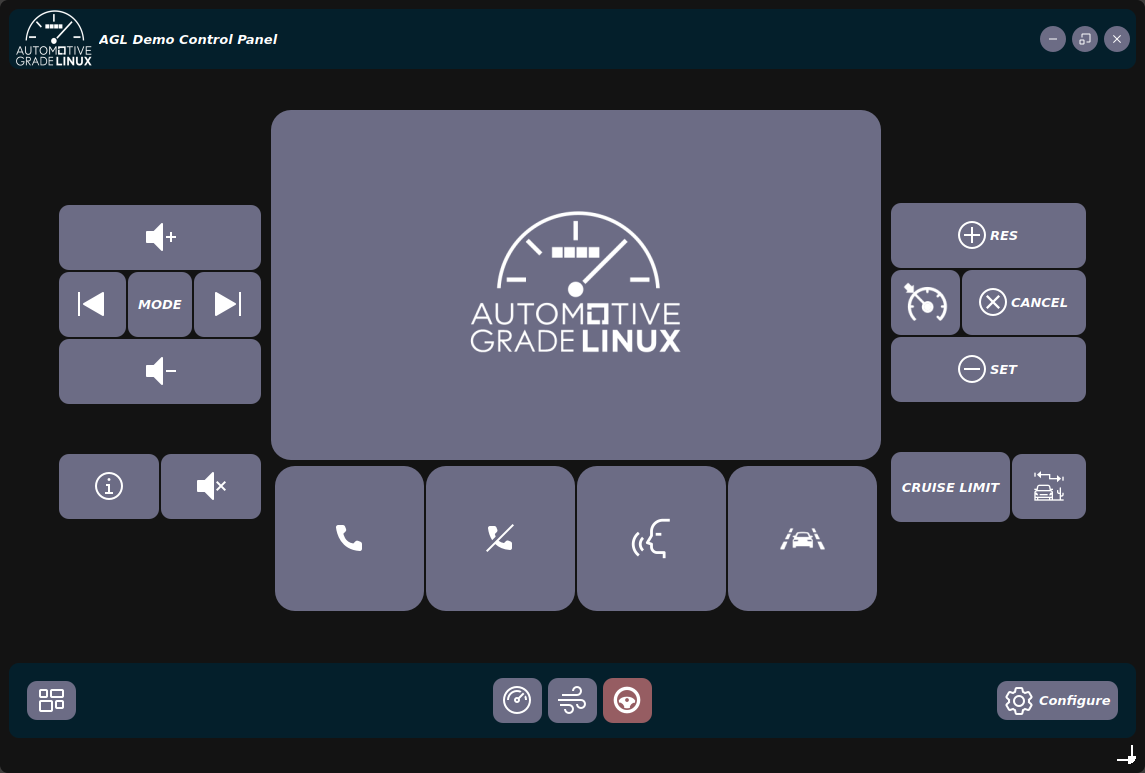

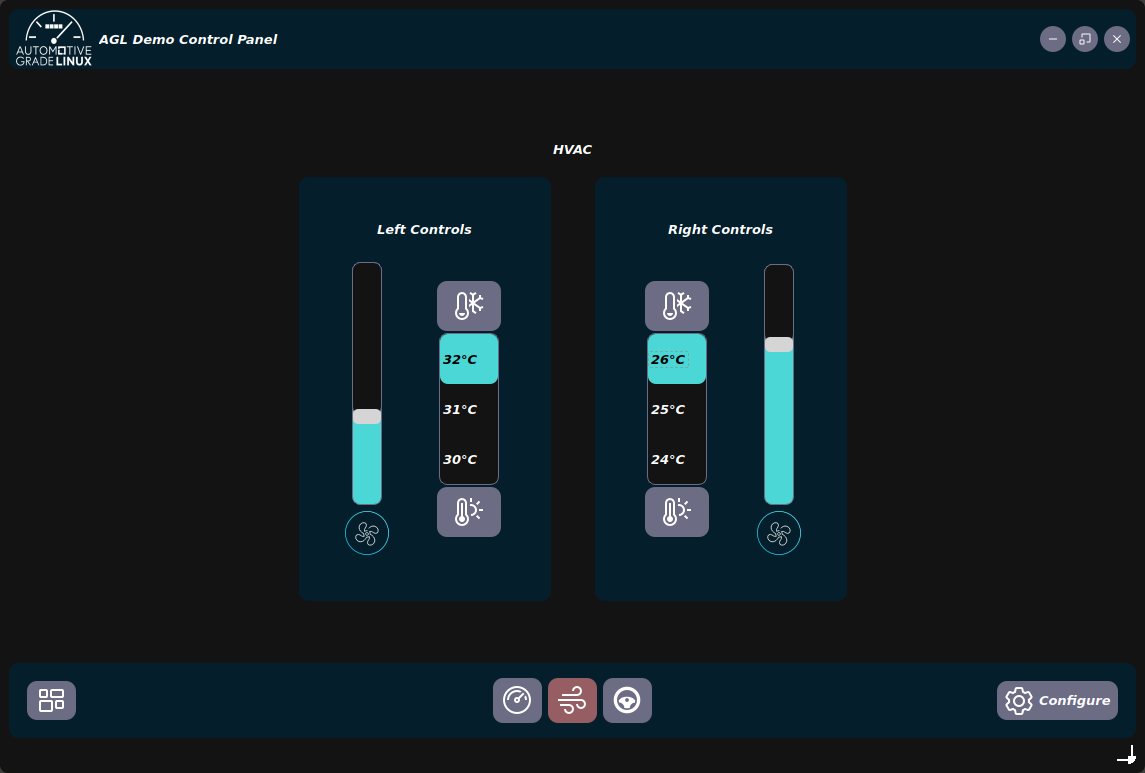

  1. Navigate to the desired page using the provided buttons at the bottom
